Important advantages of the EXCODO Extruder-machine are:
High quality of the produced hollow-core slabs
Maximum reliability and productivity
Easy operation and maintenance
Minimum investment, production and maintenance-costs
Optimal price/ quality-rate

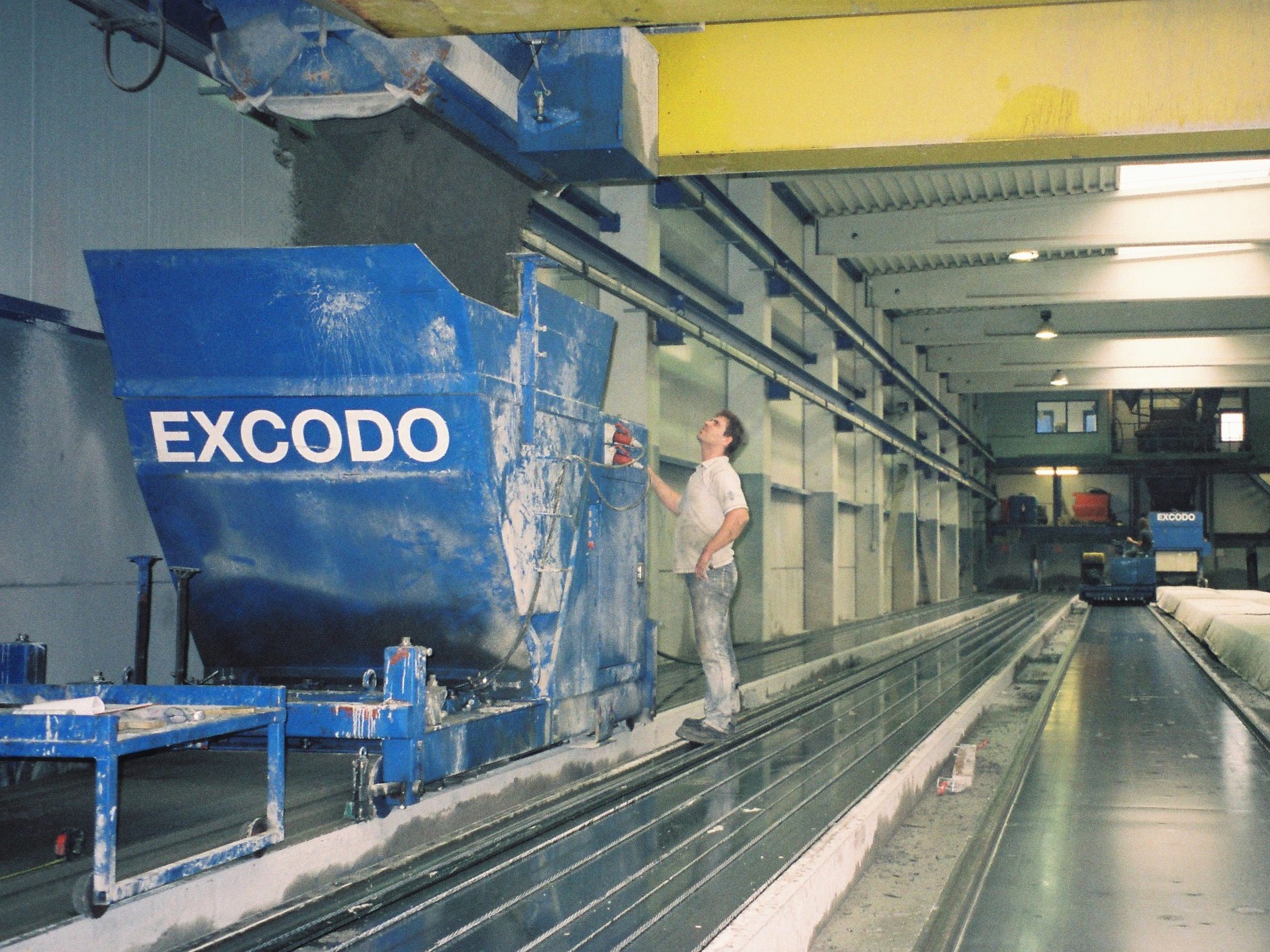

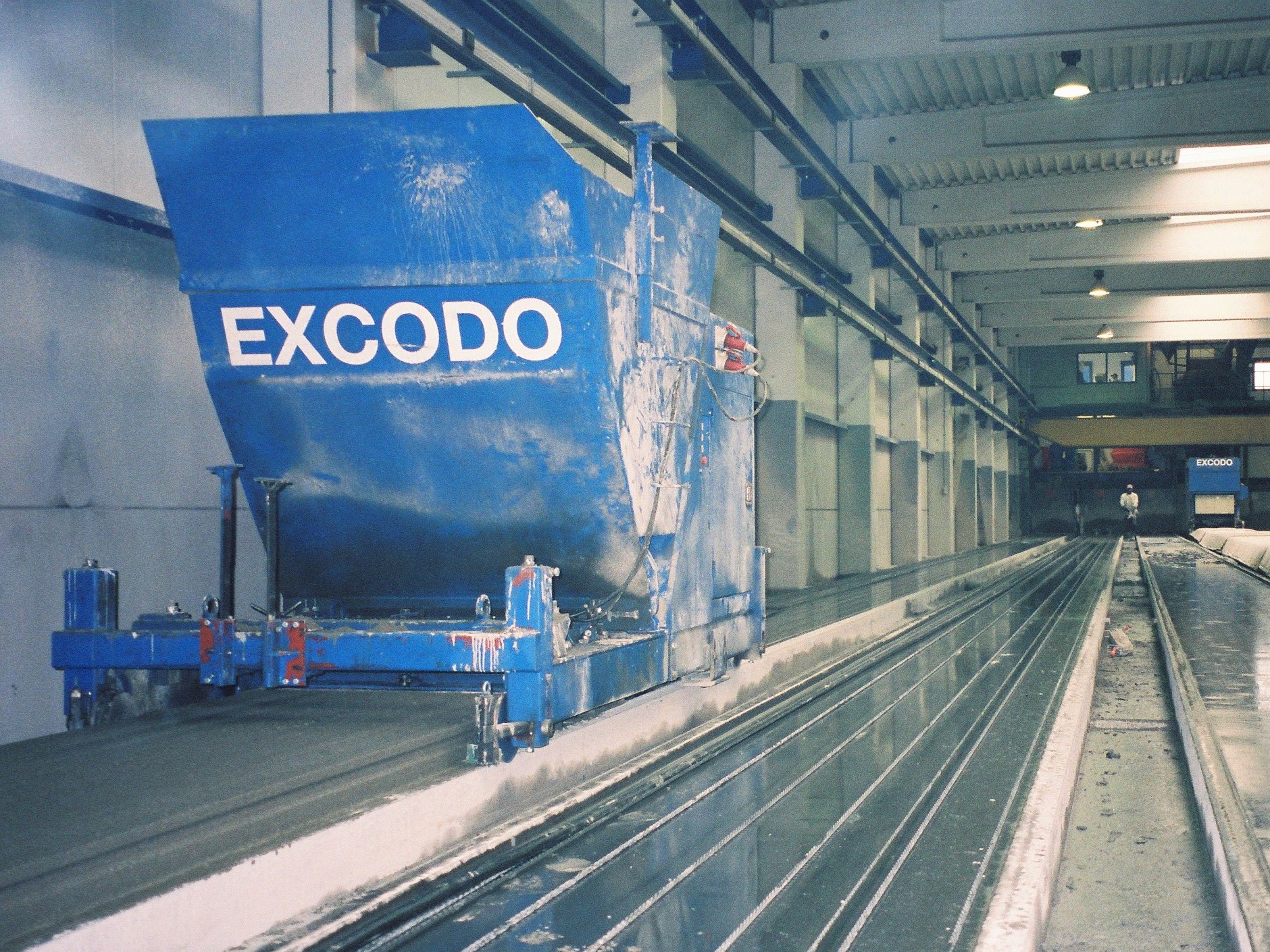

The EXCODO Extruder-machine
consist of a basic machine and a slabheight-unit. With our system it is possible to produce different slab-heights with one and the same basic machine. The complete slabheight-units (complete with side-profile and topside vibration group) can be exchanged quick and easy in the basic machine.
Height-units for the following slab-sizes have been included in our range:
165mm 200mm 265mm 320mm 400mm
Technical Specification
Basic Extruder-machine
The basic-machine consists of the following parts:
- Chassis with adjustable wheels for different slab-sizes.
- Detachable concrete hopper, approx. 2 m2.
- 4 pc. driving gears, each 11 kW, to drive the compaction augers.
- The RPM of each driving gear is adjustable (display with RPM, adjustable by buttons).
- 4 pc. driving gears, each 5.5 kW, to drive the vibrators inside the compaction augers.
- Modern electrical switch cabinet with the necessary control units.Universal components are used.
- For protection the driving gears and the switch cabinet are housed inside a steel cabinet.
- Cable-drum for electric cable, installed at the back of the machine, to keep the electric power-cable automaticcally taut.

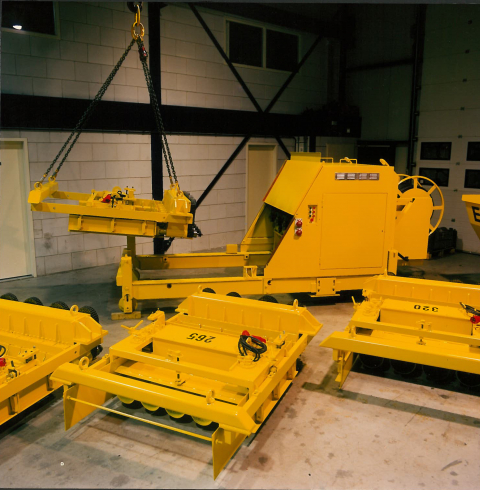

Slabheight-Unit(s)
The slabheight-unit (set) consists of the following parts:
- Specially developed long-life compaction augers.
- Bearing-houses for the compaction augers.
- Adjustable vibrators inside the compaction augers (Extruder-techni¬que).
- Tempered follow-pipes.
- Side-profile plates.
- Complete vibration group for the topside of the hollow-core slab.
- Template wire guides to keep the prestressed wires in the correct position.
